Sub-problem 4d: Further Consideration of the Northbound Right Turn
Step 1. Setup
The analyses conducted at Krome Avenue and Okeechobee Road to this point have treated the northbound right turn as a stop-controlled movement. As shown in the previous problem, this results in an estimated capacity that anticipates a failing condition. Closer inspection of the assumption reveals that this may be too conservative and that it should be considered as a merge. As shown in the aerial photograph of Exhibit 3-24 and in Exhibit 3-32, below, the right-turn channelization is designed more as a merge than a conventional intersection.
|
Intersection |
|
Merge Area |

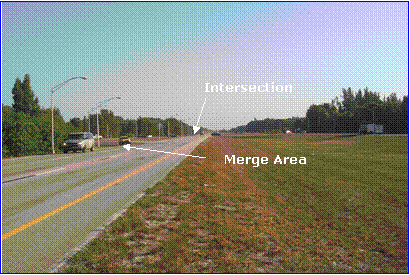

Exhibit 3-32. Northbound Right Turn Site Photograph
Consider:
-
What HCM procedure might be employed to consider the operations of this location?
- What is the basis for determining LOS in the unsignalized intersections methodology?
Discussion:
Take
a few minutes to consider these questions. Click continue when you are
ready to proceed.
