ID# C1OV001

Overview

Printable Version Printable Overview, Introduction, and Getting Started

This case study presents information on a decision that will be made by the Idaho Transportation Department regarding the operation of an intersection on U.S. Highway 95 within the City of Moscow, Idaho. The intersection is currently stop-sign controlled but consideration is being given to installing a traffic signal at the intersection. Click here to see what kinds of problems will be considered as part of this case study.

The case study includes six problems, each one illustrating some aspect of this decision:

bullet

Problem 1 analyzes the intersection under both stop sign and signal control;

bullet

Problem 2 addresses the effects of adjacent intersections as well as progression considerations;

bullet

Problem 3 illustrates how to evaluate the intersection under oversaturated conditions, and also how to take account of a significant change in vehicle mix;

bullet

Problem 4 addresses the issue of actuated control;

bullet

Problem 5 suggests how to deal with an adjacent road segment that is neither an arterial nor a two-lane highway; and

bullet

Problem 6 shows how a planning-level analysis might be conducted.

The purpose of each of the problems is to show how various traffic analysis tools that are contained in the Highway Capacity Manual can be applied to assist traffic analysts, engineers, planners and decision-makers in making sound investment decisions regarding the signalization decision. There are some situations where this amount of analysis would not be necessary in order to make an informed decision, but the issues presented herein should always be considered so as to assure the final decision is consistent with system performance objectives.

The problems in this case study focus on the chapters of the HCM that deal with interrupted flow facilities, either signalized or unsignalized intersections. After studying this material, you should be able to:

bullet

Analyze the operation of signalized intersections, unsignalized intersections, and urban arterials using the HCM.

bullet

Understand what input data are required and the assumptions that are commonly made regarding default values for the HCM procedures for these facilities.

bullet

Know the appropriate kinds of analysis that should be undertaken for both existing facilities as well as future facilities or conditions, including the scope of a facility that should be included in an analysis.

bullet

Understand the limitations of the HCM procedures and when it is appropriate to use other models or computational tools.

bullet

Know how to reasonably interpret the results from an HCM analysis and how these results can be used to support a particular decision regarding a change to a transportation system.

[ Back ] to Site Index [ Continue ] to Introduction

Page Break

ID# C1IN001

Introduction

Printable Version Printable Overview, Introduction, and Getting Started

Sketch overview of Moscow highway system

The intersection of U.S. 95 with Styner Avenue-Lauder Avenue is currently stop-controlled, and is the focus of a controversy over whether a signal ought to be installed.

To understand the context in which our analyses will be conducted, it is important to note that U.S. 95 is the primary north-south state highway in Idaho, carrying between 15,000 and 23,000 vehicles per day through the city of Moscow, a community of 21,000 persons located in north Idaho. The city is home to the University of Idaho, the state's land grant university with a student population of nearly 11,000.

Traffic on this section of U.S. 95 has been increasing at the rate of nearly two percent per year over the past decade. As it enters the city from the south, U.S. 95 transitions from a two-lane highway to an urban arterial with both signal and stop-sign control. Much of the land use to the south is farming, with some industrial, commercial, and residential development encroaching into these less developed sections of the area.

The area to the east of U.S. 95 in the southern part of the city is primarily residential, particularly along Styner Avenue and Palouse River Drive. Click the link to Exhibit 1-1 on the left to see this section of the city's highway system.

In the southern part of the city, U.S. 95 transitions from a two-lane highway to a four-lane arterial. Two of the intersections (State Highway 8 and Sweet Avenue) are controlled by traffic signals while three of the intersections (Taylor Avenue, Styner Avenue, and Palouse River Drive) are controlled by stop signs. There are also a number of driveway access points along the arterial. Click on Exhibit 1-2 to see an overview sketch of the U.S. 95 corridor and Exhibit 1-3 to see an aerial view of U.S. 95.

The intersections of U.S. 95/State Highway 8 (see Exhibit 1-4) and U.S. 95/Sweet Avenue (see Exhibit 1-5) are signal controlled, operating fully-actuated, with no coordination between them. The three unsignalized intersections are located at Taylor Avenue/U.S. 95, Styner-Lauder Avenue/U.S. 95 (see Exhibit 1-6) and Palouse River Drive/U.S. 95.

Click the links to the left to view aerial photographs of these intersections.

Exhibit 1-1. Sketch of City of Moscow's highway system

Sketch overview of US 95 corridor

Aerial photograph of US 95 corridor

Exhibit 1-2. Sketch overview of U.S. 95 corridor Exhibit 1-3. Aerial photograph of U.S. 95 corridor

Aerial photograph of US 95/State Highway 8

Exhibit 1-4. U.S. 95/SH8

Aerial photograph of US 95/Sweet Avenue

Aerial photograph of US 95/Styner Avenue/Lauder Avenue

Exhibit 1-5.
U.S. 95/
Sweet Avenue
Exhibit 1-6. U.S. 95/
Styner Avenue/
Lauder Avenue

[ Back ] [ Continue ] with Introduction

Page Break

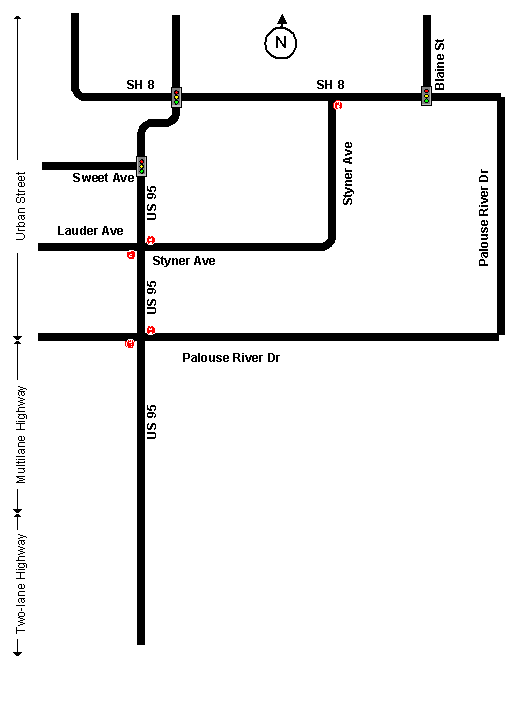

Exhibit 1-1. Sketch overview of Moscow highway system

The U.S. 95 corridor in the city of Moscow is shown in the figure below. The corridor runs from State Highway 8 on the north to Palouse River Drive on the south. Two signalized intersections and two two-way stop-controlled intersections are located on this section of the U.S. 95 corridor. The corridor extends south of the city and transitions into a multilane highway and then a two lane rural highway.

State Highway 8 is an east-west highway through the city. In the section shown below, it is two lanes, one in each direction. Two signalized intersections and two TWSC intersections are located on this section of the highway.

Note: You can see aerial photographs of several of the U.S. 95 intersections by moving the mouse over the intersections and clicking on them.



Page Break

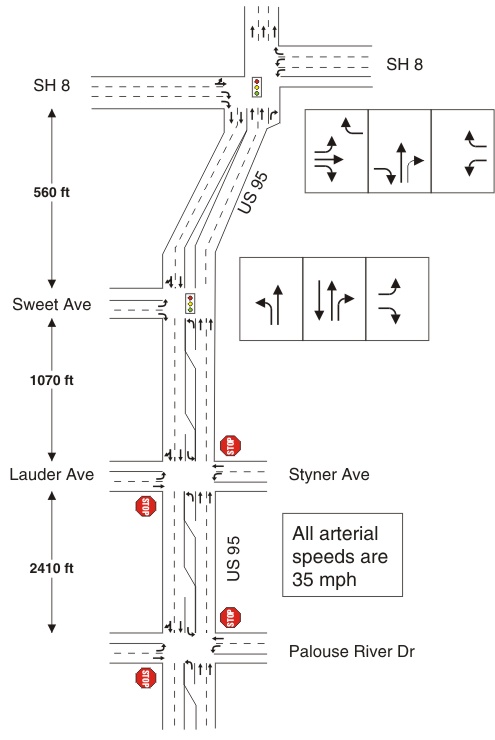

Exhibit 1-2. Sketch overview of U.S. 95 corridor in Moscow

This sketch shows the geometrical detail of the U.S. 95 corridor between State Highway 8 and Palouse River Drive.

The intersection of U.S. 95 and State Highway 8 is a signalized intersection. The intersection has three approach legs.

The intersection of U.S. 95 and Sweet Avenue is a signalized T-intersection. Sweet Avenue serves as the south entry to the University of Idaho.

The intersection of U.S. 95 and Styner-Lauder Avenue is a TWSC intersection. Styner Avenue serves a growing residential area in the eastern section of the city. Lauder Avenue serves as a minor entrance to the University of Idaho and access to student and faculty residences.

The intersection of U.S. 95 and Palouse River Drive is a TWSC intersection. The eastern approach of Palouse River Drive is scheduled for major improvements as it may become the major service and access road for the eastern section of the city.

page break



Page Break

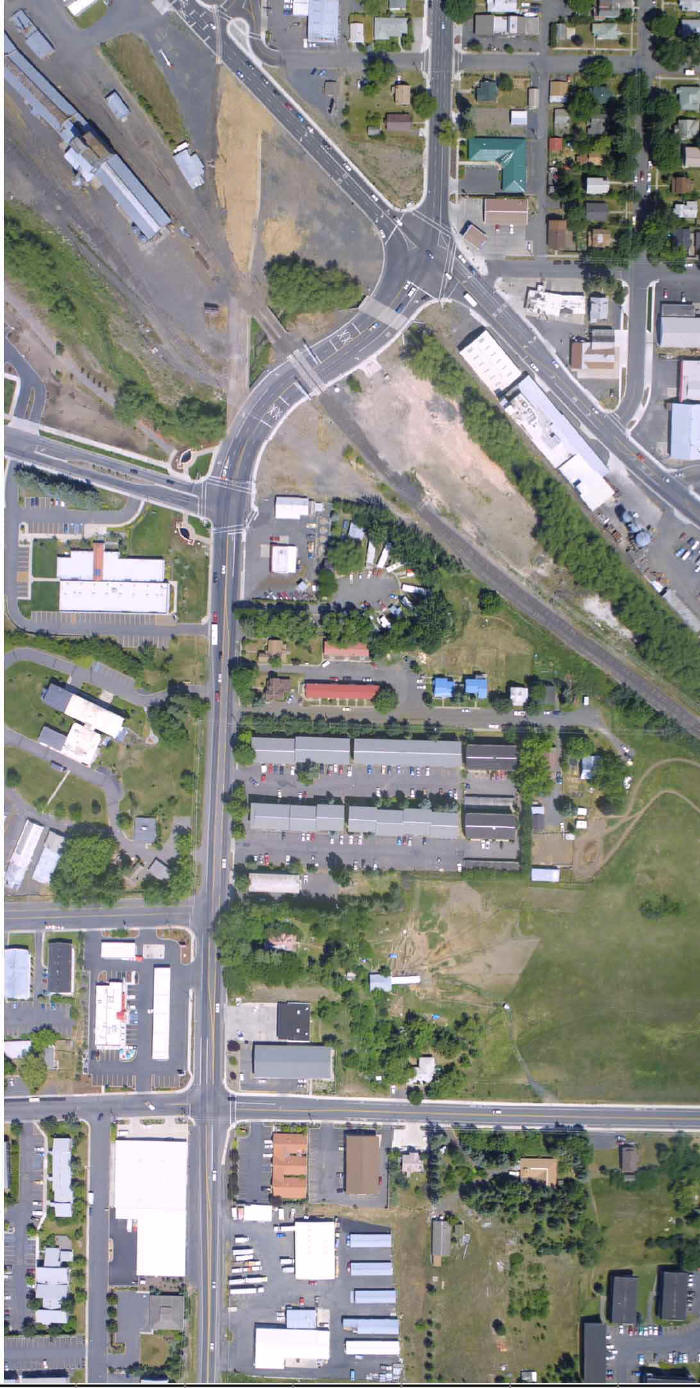

Exhibit 1-3. Aerial photograph of U.S. 95 corridor in Moscow

The aerial photograph shows the U.S. 95 corridor as it runs north-south in the City of Moscow from the State Highway 8 intersection on the north to the Styner Avenue/Lauder Avenue intersection on the south.

Move the cursor over the photograph to zoom in on the intersections of State Highway 8, Sweet Avenue, and Styner Avenue/Lauder Avenue.

US 95/State Highway 8 US 95/Sweet Avenue US 95/Styner Ave/Lauder Ave





Page Break

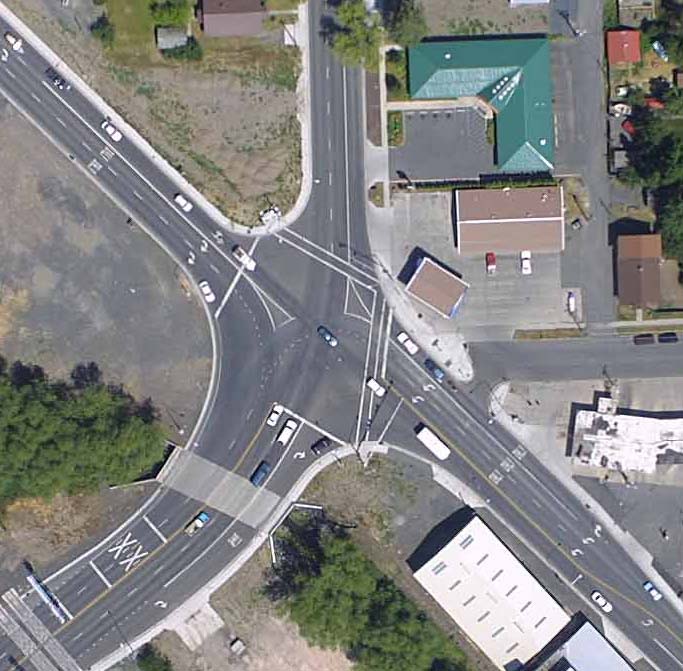

Exhibit 1-4. Aerial photograph of U.S. 95/State Highway 8

The intersection of U.S. 95 and State Highway 8 is located at the southern end of Moscow's central business district. U.S. 95 continues to the north as the northern portion of the downtown's one-way couplet. The southern portion of the couplet is the eastbound approach to this intersection. The eastbound approach serves traffic coming from Moscow's east side and smaller communities such as Troy and Deary to the east.





Page Break

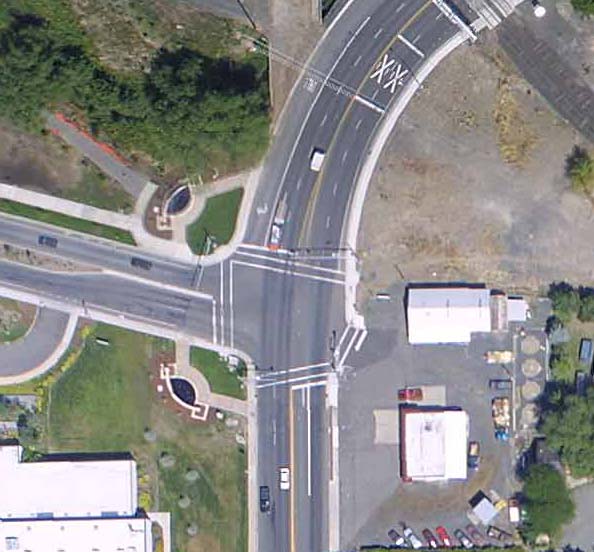

Exhibit 1-5. Aerial photograph of U.S. 95/Sweet Ave

The intersection of U.S. 95 and Sweet Avenue is a signalized T intersection. The eastbound Sweet Avenue approach serves as the south entrance to the University of Idaho. It is a four lane boulevard with a median strip. U.S. 95 is has turning lanes from the north and south to serve university traffic. The intersection actually functions as a four leg intersection with access provided to a business located on the westbound approach to the intersection but traffic volumes on this approach are so minimal that they can be ignored.

Page Break

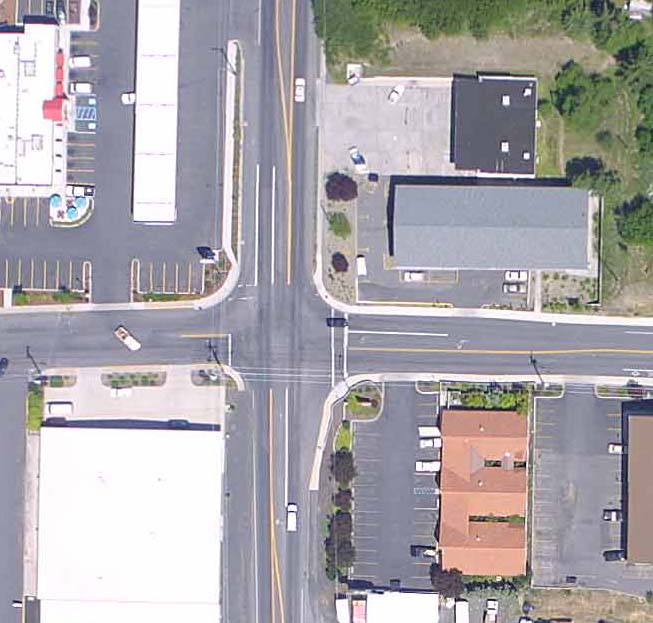

Exhibit 1-6. Aerial Photograph of the Intersection of U.S. 95 with Styner Ave/Lauder Ave

The intersection of U.S. 95/Styner Avenue/Lauder Avenue is a four leg TWSC intersection. The westbound approach, Styner Avenue, serves a growing residential area in the eastern section of the city. Lauder Avenue serves as a minor entrance to the University of Idaho and access to student and faculty residences. A gas station/mini-mart is located on the northwest quadrant of the intersection. Other auto-oriented businesses are located on the other quadrants.

Note: You can see other views of the intersection approach by moving your mouse to the approach and clicking on the approach.

View from west (US 95 at Styner Avenue/Lauder Avenue) View from east (US 95 at Styner Avenue/Lauder Avenue) View from north (US 95 at Styner Avenue/Lauder Avenue) View from south (US 95 at Styner Avenue/Lauder Avenue)

Page Break





Page Break
Home > Introduction

ID# C1IN002

Introduction

City residents have asserted that increasing traffic volumes at the intersection of Styner Avenue, Lauder Avenue, and U.S. 95 are increasing delays for and reducing the safety of motorists traveling through the intersection. Traffic on Styner and Lauder, the minor streets of this two-way stop-controlled intersection, is controlled by stop signs. Limited sight distance for drivers on Styner and Lauder contributes to the safety problem. As a result of these citizen complaints, the city has requested that the Idaho Transportation Department signalize the intersection.

Discussion:
Consider the situation described above and review the sketches and aerial photographs showing the street system. What issues do you think should be considered by the state's traffic engineer in resolving this problem? After you have listed these issues, continue to the next page to learn how we can apply the methods of the Highway Capacity Manual to address these issues and provide assistance to decision makers from the state and the city on whether or not this intersection should be signalized.

[ Back ] [ Continue ] to Getting Started

Page Break

ID# C1GS001

Getting Started

Printable Version Printable Overview, Introduction, and Getting Started

As we begin this case study, we will consider several issues, including the scope of the analysis that we will undertake, the stakeholders and the issues that are important to them, the goal of the case study, the performance measures that we will use to support this decision-making process, the analyses that we will perform to generate our performance measures, the tools that we will use, the data that is required, and some of the technical issues with respect to the Highway Capacity Manual that are included in each problem. Click here to see what kinds of problems will be considered as part of this case study.

Scope of the Analysis
Our major focus is the intersection of U.S. 95 with Styner Avenue and Lauder Avenue. But we will see as our discussion proceeds that it is important to consider not just this intersection but some of the surrounding highway system as well. For now, we'll define the segment of most interest to us as the U.S. 95 corridor from State Highway 8 on the north to Palouse River Drive on the south.

We will also consider travel patterns that normally occur during a typical weekday, while the University of Idaho is in session. Traffic volumes vary throughout this typical weekday, with peak periods occurring during the morning and afternoon, with a secondary peak during the midday. There are also mini-peak periods during class change times, but these variations are not significant enough to consider for our analysis here. We'll see later in the analysis, however, that there are other time periods, such as during special university events, that traffic volumes increase significantly and have a bearing on the results that we need to consider.

While many people are concerned about the operation of the intersection today, it is also important to consider how the intersection is likely to operate in the future. The investment in signal controllers and related equipment is sizable, and its feasibility must be justified by looking at both conditions present today and those likely to exist in the future. For this reason, we will also consider future traffic volume projections for the U.S. 95 corridor.

[ Back ] [ Continue ] with Getting Started

Page Break

ID# C1GS002

Getting Started

Stakeholders
The Idaho Transportation Department has primary authority for the operation of U.S. 95. It does all of the planning, design, and maintenance of this highway. However, it works closely with the staff from the City of Moscow so that, as much as possible, decisions regarding the state highway facilities within city limits are made jointly between the city and the state. As we develop the results from our analyses, the major audience, then, will be the engineering staffs from these two agencies.

In addition, residents of the city will need to understand the rationale for any final decision that is made regarding the intersection and whether a signal should be installed or not. This points up an important issue in any technical analysis. While any analysis must be technically sound and based on standard methods of professional practice, it must also be presented in such a way that it is understandable by decision makers and elected officials (who often do not have technical backgrounds) as well as the general public. This is particularly important as we consider such concepts as level of service, and as we talk about sensitivity analysis and the relative certainty that we have in our final results.

Goals
The major reason for conducting the analyses that makes up this case study is to provide decision makers with sufficient information about the performance of the intersection of U.S. 95/Styner Avenue/Lauder Avenue so that they can decide whether the intersection should be signalized or whether it should remain stop-sign controlled. The Highway Capacity Manual provides estimates of delay, volume/capacity ratio, queue length, and other data that are helpful to decision-makers in making this kind of decision.

We should also point out that the Manual on Uniform Traffic Control Devices (MUTCD) is commonly used to determine if a signal is warranted and in most jurisdictions is the legal document used to determine many of the characteristics of a design. However, it is also useful to compare the forecasted operations of an intersection under different control scenarios. The Highway Capacity Manual provides the tools for such an operational analysis.

with Getting Started


Page Break

ID# C1GS003

Getting Started

Performance Measures
The Highway Capacity Manual provides several performance measures for intersections, both signalized and unsignalized. For both of these types of intersections, the primary measure of effectiveness is control delay. Control delay is directly related to level of service, a range of levels that categorize performance from the point of view of the driver, or the user of the highway system. Level of service (along with delay) will be used here to help us determine if the intersection of U.S. 95/Styner Avenue/Lauder Avenue should be changed from stop sign control to signal control.

We will also need to consider other performance measures besides just level of service in order to fully judge the overall performance characteristics of the intersection. Depending on the type of control at the intersection, these may include the volume/capacity ratio of the critical movements at the intersection, the traffic signal cycle length, and/or queue length considerations.

Analyses
We must complete several computations in order to gather the required information on the performance of the U.S. 95/Styner-Lauder Avenue under both stop sign and signal control. For convenience, we've divided the analyses into six parts or problems. We will consider each problem separately. We will also see that each problem consists of several separate computations, using the Highway Capacity Manual or other tools, such as TRANSYT 7F or CORSIM.

bullet

In Problem 1, we will study the intersection under both stop sign and signal control under both present and future traffic conditions, for the typical weekday found in Moscow, Idaho.

bullet

In Problem 2, we will consider these same conditions, but within the context of the U.S. 95 arterial as a whole. Here, we will particularly focus on the effect that the adjacent intersections have on the U.S. 95/Styner-Lauder Avenue intersection, and how a new signal at this intersection must operate in conjunction with the adjacent signalized intersections.

bullet

In Problem 3, we will consider other time periods, including traffic volumes during special events at the University of Idaho and during different times of the year, when the mix of vehicles in the traffic stream changes.

bullet

In Problem 4, we will consider how we can forecast the performance of the U.S. 95/Styner-Lauder Avenue intersection when an actuated traffic controller is used.

bullet

In Problem 5, we will consider the operation of the highway outside the city limits, where it is operating as a two-lane highway.

bullet

In Problem 6, we will consider the less detailed planning analysis and what information it can tell us about future operations of the intersection and the corridor.

with Getting Started

Page Break

ID# C1GS004

Getting Started

Tools
Most of the computations that we conduct in this case study will be with the Highway Capacity Manual, particularly those chapters that deal with intersection and arterial operations. This includes Chapter 15 (Urban Streets), Chapter 16 (Signalized Intersections), and Chapter 17 (Unsignalized Intersections).

For some parts of the analyses, however, and for certain traffic conditions, we will consider the use of other tools. There are a variety of software tools available that we could use, and for illustrative purposes we will demonstrate the use of only two, TRANSYT 7F and CORSIM. TRANSYT 7F is a macroscopic flow model that consider the progression of traffic platoons from one intersection to the next. CORSIM is a microscopic traffic model that considers the movement of individual vehicles along an arterial and the details of actuated traffic controller operations. Other software packages could also be applied with equal effectiveness.

Data
Three kinds of data are generally needed for traffic analysis. Demand or volume information specifies the turning movement flows (usually in vehicles per hour) at each intersection approach. Intersection geometry includes the number and configuration of lanes at an intersection and along an arterial. Control conditions include information about the traffic signal system, including signal timing and phasing data.

The data for each problem can be found at the links provided below. These links are also provided in each of the problems, as you need to access them.

U.S. 95/Styner Avenue/Lauder Avenue
U.S. 95/Styner Avenue/Lauder Avenue, during special university events
U.S. 95/Styner Avenue/Lauder Avenue, during summer periods
U.S. 95/Sweet Avenue
U.S. 95/Palouse River Drive
U.S. 95/State Highway 8

U.S. 95 arterial data

with Getting Started

Page Break

ID# C1GS005

Getting Started

Technical Issues
The computational procedures of the Highway Capacity Manual are complex, often including a number of default values or assumptions that need to be understood (and sometimes modified) if the procedures are to be applied correctly to specific problems.

This case study presents, and hopefully clarifies, a number of technical issues that often arise in the application of chapters 15, 16, and 17 of the HCM.  A searchable index of the issues and important key words addressed in this and other case studies within the HCMAG is provided near the bottom of the table of contents located in the left margin of this page and labeled as "Search".

to Problem 1
